RO System 100 LPH
RO System 100 LPH

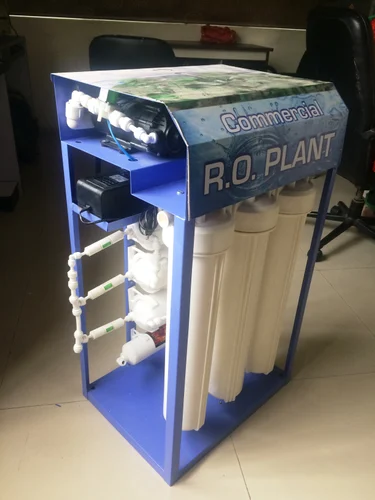

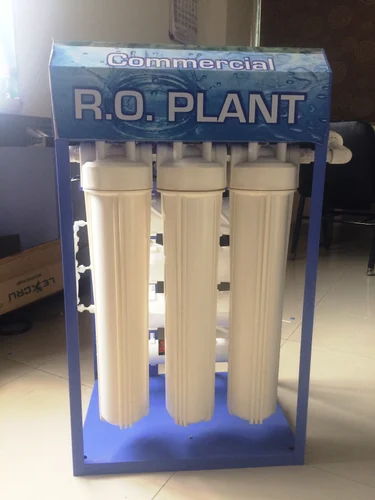

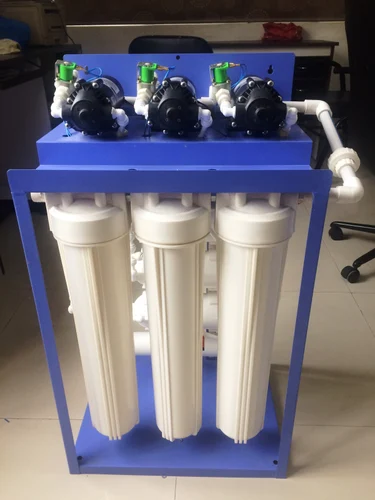

The RO System 100 LPH is a high-efficiency Reverse Osmosis water purification system designed to produce up to 100 liters of purified water per hour. Ideal for medium to large commercial settings, this system delivers high-quality, safe drinking water by effectively eliminating contaminants, such as dissolved salts, heavy metals, bacteria, and other impurities. It's a reliable choice for industries, schools, hospitals, and food services that require a consistent supply of purified water.
Key Features:
- Capacity: Processes up to 100 liters per hour, making it suitable for medium-sized commercial operations, large households, or institutions.
- High-Efficiency RO Membrane: Utilizes advanced thin-film composite (TFC) membranes to achieve a 98-99% rejection of dissolved solids and harmful contaminants.
- Multi-Stage Filtration: Pre-filtration with sediment and activated carbon filters to remove particulates, chlorine, and organic chemicals before the water reaches the RO membrane, ensuring longer system life and better performance.
- Post-Treatment: Includes optional UV sterilization or post-carbon filtration to provide additional purification, eliminating any remaining microorganisms or chemical residues.
- Compact and Durable Design: Designed for efficient space utilization with corrosion-resistant materials that ensure a long service life even under challenging conditions.
- Automated Operations: Fully automated system with smart features such as auto shut-off, low-pressure protection, and automatic flushing to maintain optimal performance with minimal manual intervention.
- Energy-Efficient: Consumes low energy despite its high output, contributing to cost savings in operational settings.
Applications:
- Commercial Kitchens & Restaurants: Provides purified water for cooking, beverage preparation, and drinking, enhancing food quality and customer satisfaction.
- Schools & Offices: Ensures a constant supply of safe drinking water for students and employees, promoting health and well-being.
- Hospitals & Laboratories: Delivers water free from contaminants and microbes, supporting hygiene and clinical standards in healthcare and laboratory environments.
- Industrial Use: Suitable for industrial applications requiring high-purity water for production processes.
- Bottled Water Plants: Can be integrated into small bottled water plants to produce purified drinking water.
Technical Specifications:
- Flow Rate: 100 liters per hour (LPH)
- Membrane Type: Thin-film composite (TFC) RO membrane
- TDS Reduction: Up to 98-99% of Total Dissolved Solids (TDS)
- Recovery Rate: 40-50%, depending on the quality of the feed water
- Feed Water TDS: Suitable for water with TDS up to 2,000 ppm
- Operating Pressure: 8-12 bar
- Power Consumption: Low energy consumption, approximately 0.4-0.7 kW
- Construction Material: Stainless steel or robust plastic, based on the model
- Pre-Filtration: Includes sediment and activated carbon filters to remove large particles and chlorine
- Post-Filtration: Optional UV sterilizer or carbon filters for further purification
- Control Panel: User-friendly interface with automated features for real-time monitoring and easy maintenance
Benefits:
- Superior Water Quality: Consistently produces high-quality, clean water by removing up to 99% of harmful contaminants.
- Large Capacity: Capable of handling the water demands of medium to large establishments, ensuring a constant supply of pure water.
- Compact Design: Its space-saving design allows for easy installation in various environments, including tight spaces.
- User-Friendly Maintenance: Equipped with easy-access filters and an intuitive control system, allowing for quick maintenance and minimal downtime.
- Cost-Effective: Reduces the need for bottled water, which can result in significant savings for businesses and institutions.
- Environmentally Friendly: Helps reduce plastic waste by providing an alternative to single-use plastic bottles.
Conclusion:
The RO System 100 LPH is a robust and efficient solution for commercial and institutional water purification needs. With its high capacity, advanced technology, and ease of operation, it is designed to meet the water demands of medium to large facilities while ensuring the highest water quality. Whether for industrial applications, commercial kitchens, or schools, this system guarantees safe, clean water, contributing to improved health and operational efficiency.
